INCINERATOR AT NAIROBI SAFARI WALK

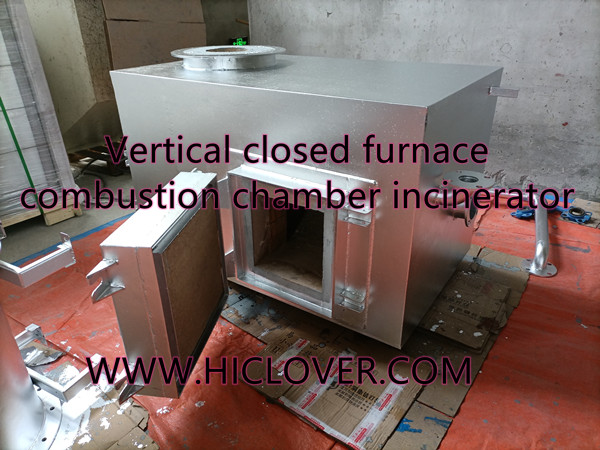

Vertical closed furnace combustion chamber incinerator

Medical waste, disposable syringes, infusion sets processing, cotton yarn, the operating room, the residual limb,
waste rubber gloves, protective clothing and infectious and harm venereal hospital bed supplies, general wastes.

10-20kg/time (daily burn 3-6times, each time consume about 1 hour) total daily
waste capacity 120 kg


Incinerator Items/Model

HICLOVER TS10(PLC)



Burn Rate (Average)

10-20 kg/hour

Feed Capacity(Average)

20kg/feeding

Control Mode

PLC Automatic

Primary Combustion Chamber

100L

Internal Dimensions

50x50x40cm

Secondary Chamber

50L

Smoke Filter Chamber

Yes

Feed Mode

Manual

Voltage

220V 2P

Power

0.5Kw

Burner Type

Italy Brand

Oil Consumption (kg/hour)

6

N.Gas Consumption (m3n/hour)

6.2-11.4

Temperature Monitor

Yes

Temperature Thermometer

Corundum Probe Tube, 1400℃Rate.

Temperature Protection

Yes

Automatic Cooling

Yes

Automatic False Alarm

Yes

Automatic Protection Operator(APO)

Yes

System Testing Model

Yes

Time Setting

Yes

Progress Display Bar

LCD Display

Oil Tank

200L

Oil Tank Stand

190cm Height

Liquid level Display

Yes

Feeding Door

30x30cm

Chimney

3Meter

Chimney Type

Stainless Steel 304

1st. Chamber Temperature

800–1000

2nd. Chamber Temperature

1000℃-1300℃

Residency Time

2.0 Sec.

Gross Weight

1500kg

External Dimensions

140x90x120cm

1st. Chamber Composition Hot Face

Thickness: ≥115 mm

55% of Al203

1750°C Grade

2nd. Chamber Composition Hot Face

Thickness: ≥200 mm

75% of Al203

1790°C Grade

Chamber Cold Face Material

High Rate Refractory Ceramic Fiber

Other Parts Hot Face Refractory

Heavy Duty with steel fiber

Burner operation

Automatic On/Off

Dry Scrubber

Including

Wet Scrubber

Optional

Top Loading Door

Optional

Paint for outside face

250°C Grade

Sealing Material

Refractory Ceramic Fiber

Upgrade Containerized Mobile Type

Optional

CE Certificate

CE(2006/42/EC,2014/30/EU

ISO Certificate

 ISO9001:2015

High-tech Enterprise Certificate

Yes
