Incinerator Items/Model |

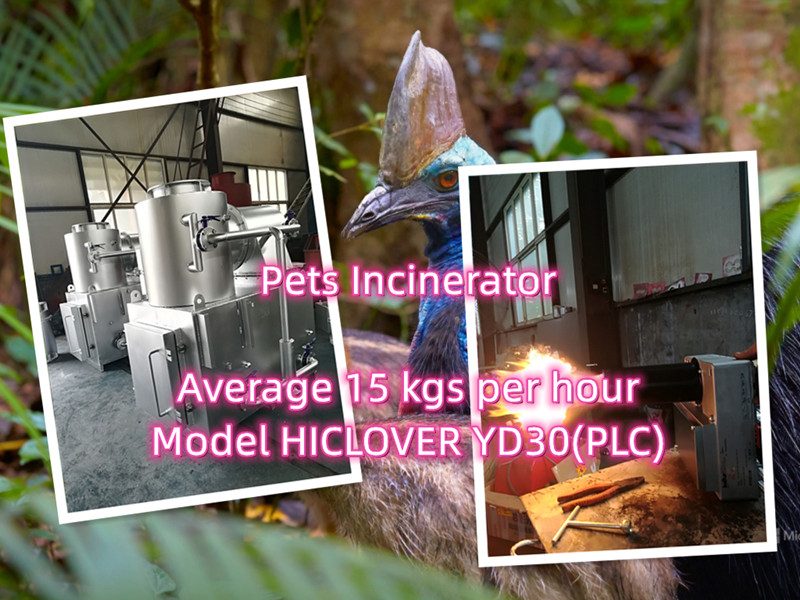

HICLOVER YD30(PLC) |
Burn Rate (Average) |
15kg/hour |
Feed Capacity(Average) |
40kg/feeding |
Control Mode |
PLC Automatic |
Primary Combustion Chamber |
360L(0.36M3) |
Internal Dimensions |
100x60x60cm |
Secondary Chamber |
200L |
Smoke Filter Chamber |
Yes |
Feed Mode |
Manual |
Voltage |
220V |
Power |
0.5Kw |
Burner Type |
Italy Brand |
Oil Consumption (kg/hour) |
12 |
N.Gas Consumption (m3n/hour) |
9.8–20 |
Temperature Monitor |
Yes |
Temperature Thermometer |
Corundum Probe Tube, 1400℃Rate. |
Temperature Protection |
Yes |
Automatic Cooling |
Yes |
Automatic False Alarm |
Yes |
System Testing Model |
Yes |
Time Setting |
Yes |
Progress Display Bar |
LCD Display |
Oil Tank |
200L |
Oil Tank Stand |
190cm Height |
Liquid level Display |
Yes |
Feeding Door |
40x50cm |
Chimney |
5Meter |
Chimney Type |
Stainless Steel 304 |
1st. Chamber Temperature |
800℃–1000℃ |
2nd. Chamber Temperature |
1000℃-1300℃ |
Residency Time |
2.0 Sec. |
Gross Weight |
2600kg |
External Dimensions |
145x90x175cm |
1st. Chamber Composition Hot Face |
Thickness: ≥115 mm |
55% of Al203 |
|
1750°C Grade |
|
2nd. Chamber Composition Hot Face |
Thickness: ≥115 mm |
75% of Al203 |
|
1790°C Grade |
|
Chamber Cold Face Material |
High Rate Refractory Ceramic Fiber |
Other Parts Hot Face Refractory |
Heavy Duty with steel fiber |
Burner operation |
Automatic On/Off |
Dry Scrubber |
Including |
Wet Scrubber |
Optional |
Top Loading Door |
Optional |
Paint for outside face |
250°C Grade |
Sealing Material |
Refractory Ceramic Fiber |
Upgrade Containerized Mobile Type |
Optional |
CE Certificate |
CE(2006/42/EC,2014/30/EU |
ISO Certificate |
ISO9001:2015 |
High-tech Enterprise Certificate |
Yes |
