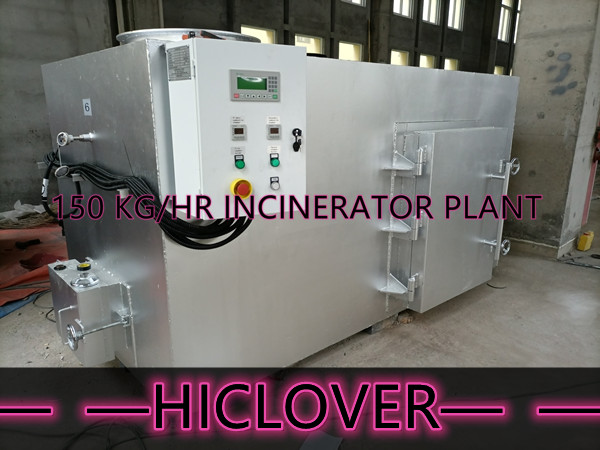

150 KG/HR INCINERATOR PLANT




Incinerator Items/Model

HICLOVER TS150



Burn Rate (Average)

150-200 kg/hour

Feed Capacity(Average)

300kg/feeding

Control Mode

PLC Automatic

Primary Combustion Chamber

1500Liters(1.5m3)

Internal Dimensions

1500x1000x1000mm

Secondary Chamber

750Liters(075m3)

Smoke Filter Chamber

Yes

The products of combustion from 出e prim缸y chamber will exhaust into the secondary chamber located directly above the prima叩 chamber for treatmen t within the secondary  chamber. Adrutional heat and 出r 缸e added to promote
combustion in the gaseous phase of  minimum tempera阳re of 850°C thus ensuring complete combustion of volatile and solid particulates .
The whole system is controlled and processed by a Central Logic Control System.
Incinerator is a beat treatment process of Biomedical waste under high temperatures m 幻d of combustion
of organic substanee to be broken down into i ts chemical component.
MANUAL LOAD PYROLYTIC INCINERATOR DESCRIPTION ・
1.Horizontal cylindrical solid hearth refractory Lined primary combustion chamber resistant to high temperatures .
2.I o何combustion air supply fan, distribution system and automatic control.
3.2 off diesel -fired ignition bumer -temperature controlled .
4.High capacity secondary combustion chamber 2 seconds @> 850°C.
5.Control panel -automatic operation.

Burner from ITALY : What is the name of manufacturer.?
