small scale municipal solid waste inceneration technologies including key  point is high temerature combustion. the chamber made with heavy duty refractory material,   we fix oil or […]

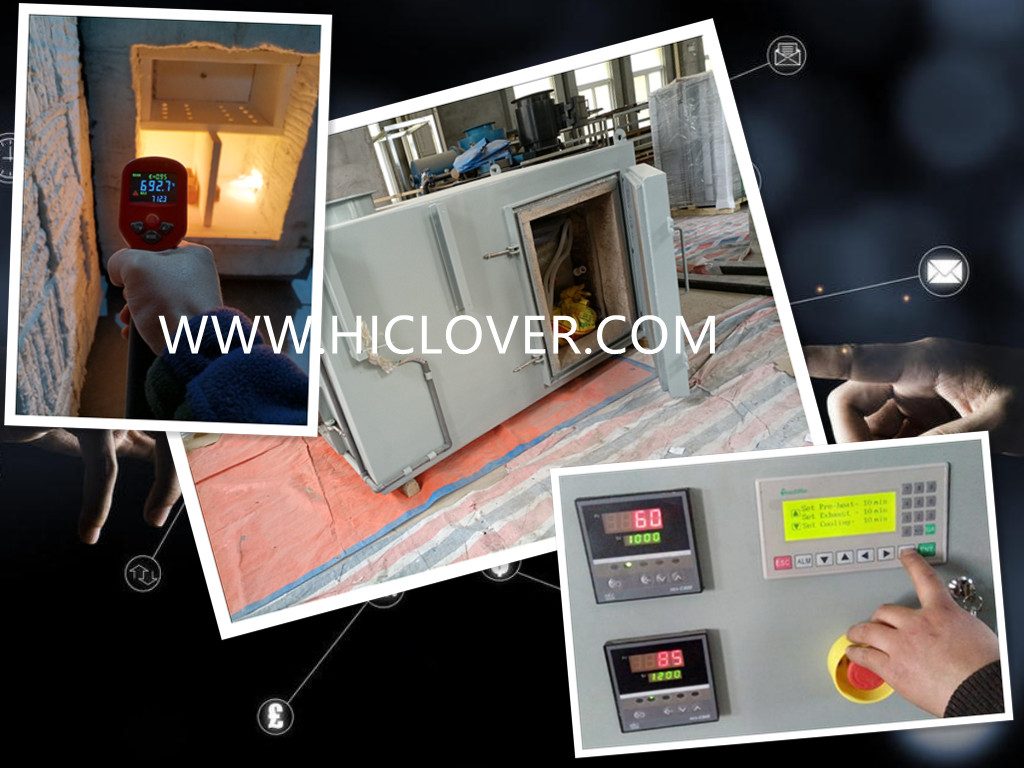

medical incinerator pictures as below for reference. the picture including primary combustion chamber, secondary combustion chamber, auto control plc case, feeding door.

How medical waste is incinerated? The pyrolytic incinerator comprises a pyrolytic chamber and a post-combustion chamber. Medical waste is thermally decomposed in the pyrolytic chamber through  an oxygen-deficient, medium-temperature combustion process (800– 900°C), producing solid ashes and gases.   What are the treatment methods for treatment of bio medical waste? Thermal processes     Low-heat systems (operates between 93 -177oC) use steam, hot water, or electromagnetic radiation to heat and decontaminate the waste     High-heat systems employ combustion and high temperature plasma to decontaminate and destroy the waste. …     Incineration.     Autoclaving.     Microwaving.     Deep Burial.   Nanjing Clover Medical Technology Co.,Ltd. waste to energy plant suppliers medical waste incinerator types

we produce incinerator for the waste incinerator for covid19 ppe waste, small capacity is 5-10kgs per hour powered by diesel oil.   high temeprature combustion chamber

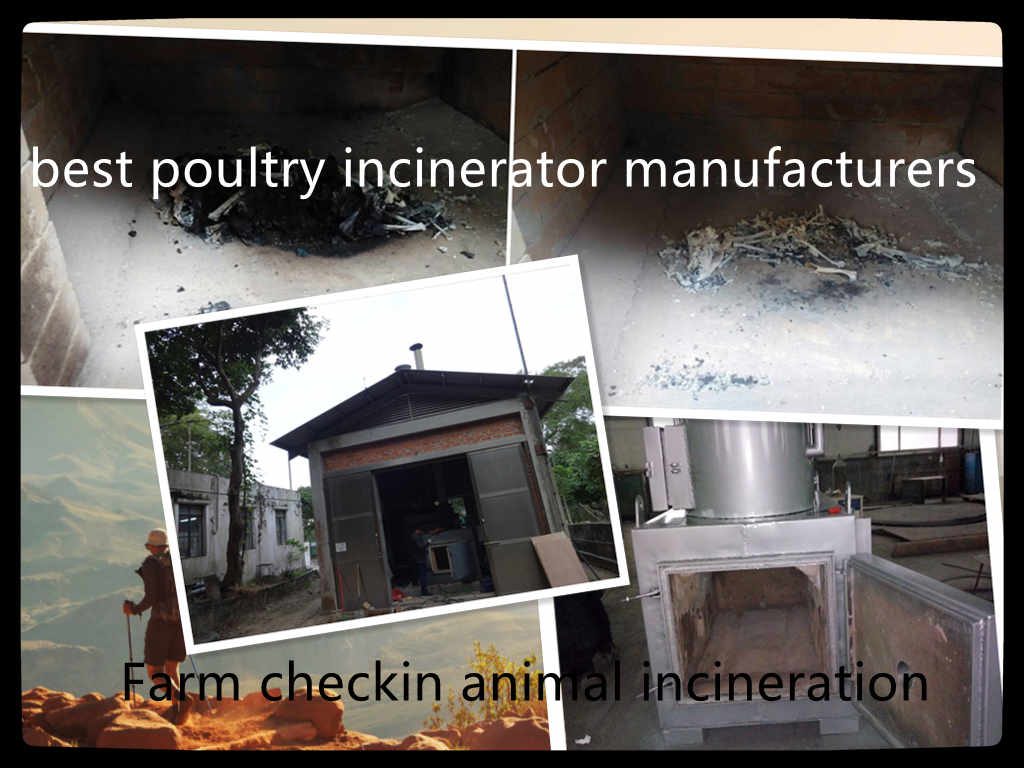

we supply brand new incinerator for animal waste incinerator for farm,pig,chicken, Agriculture, farms, pigs, cattle, sheep, chickens, ducks,etc   small

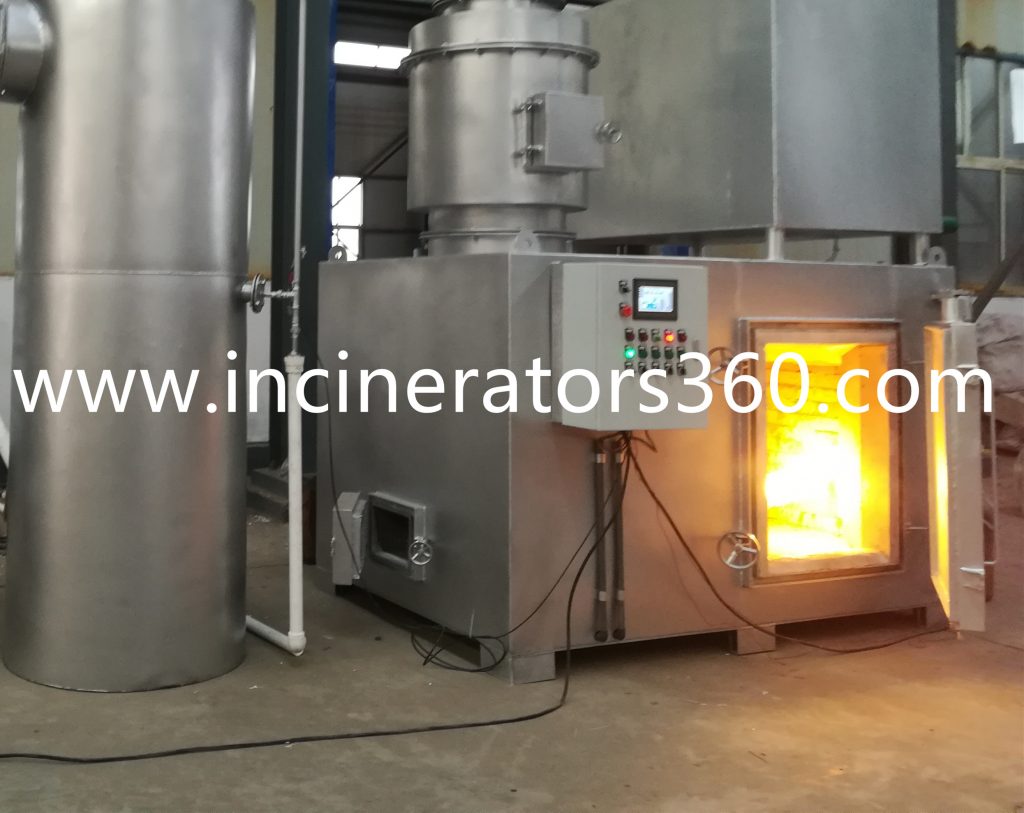

how does the incinerator works? the incinerator mainly for medical waste and animal waste treatment with oil/gas fired in the primary chamber with high

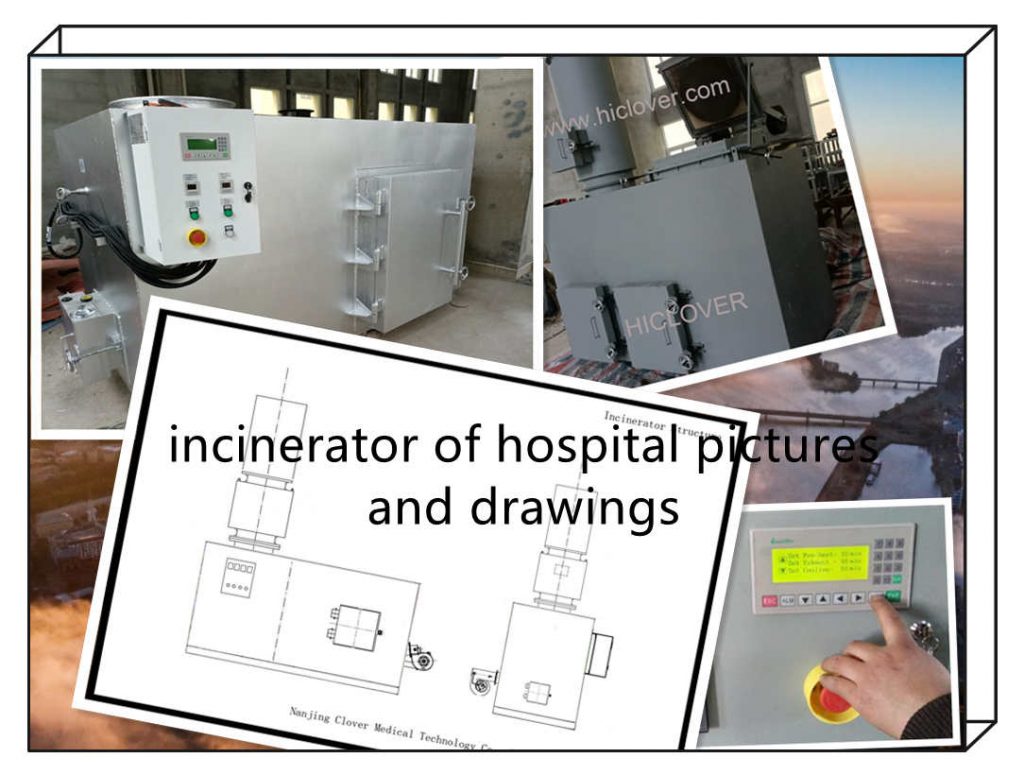

what’s the incinerator of hospital pictures and drawings? if you want to build or buy new incinerator for hospital, confirm the waste capacity per day,

we use latest incinerator technology with high temperature combustion with 2 or 3 chambers, with wet scrubber or dry scrubber system and

we supply medical two chambers incinerator 800 to 1200 degrees. the capacity from 10kgs per hour to moran than 1000kgs per hour. all incinerator pass ISO and

we supply kinds of spare parts for waste incinerator and oil or gas burners. SENSOR. BTL20/BTL26 BURNER, FLAME DETECTOR, QRB1B L=350 CAPTEUR. BTL20 / BTL26 BRULEUR, DETECTEUR DE FLAMME Motor 　 Control box Simens

TS10 PLC Waste Incinerator   Outline Dimension:1.75 x 1.3 x 1.7m Weight: Ave.1500kgs Main body(Primary combustion chamber) Material：Carbon Steel Q235B+Stainless Steel 310s+refractory firebrick material(high temperature resistance up to 1750℃) Capacity: 10-20kg/batch Combustion temperature: 800-1000℃ With chamber door, oxygen supplementation wind port, burner port, temperature control and alarm device, etc. [1 unit ] Secondary combustion chamber Material：Carbon Steel Q235B+Stainless Steel 310s+refractory firebrick material(high temperature resistance up to 1750℃) Combustion temperature:1000-1200℃ With observation port, burner port, temperature control and alarm device, etc. [1 unit ] High temperature flue gas filtration chamber Material: Outside plate: Q235B, Inside acid-resisting, alkali-resisting refractory poured material. With ash door and filtration material. [1 unit ] 1# BURNER OF 1# CHAMBER Riello brand （Italy） (High quality, combustion-resisting) Fuel: Natural gas [1 unit ] 2# BURNER OF 2# CHAMBER Riello brand （Italy） (High quality, combustion-resisting) Fuel: Natural gas [1 unit ] Chimney Material: Stainless steel，304 Length: 5m ( other length as customer request） [1 unit ] Temperature control device -Thermocouple [2 unit ] Control valve [2 pcs ]

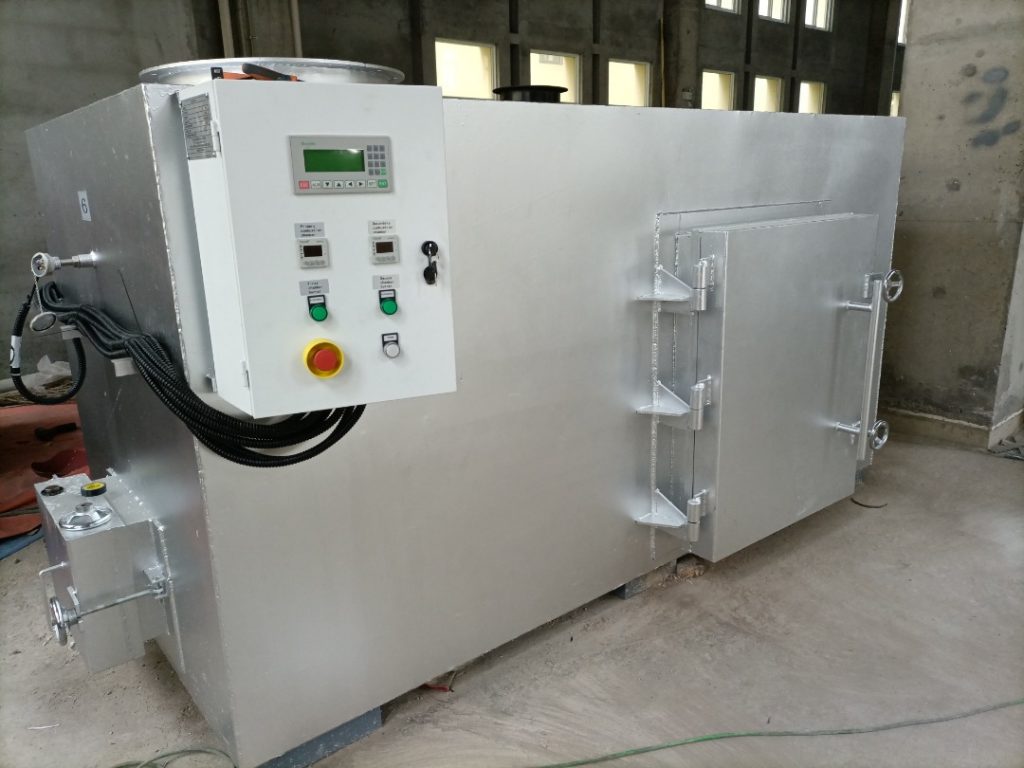

  pictures of 500kg per hour machine   Items/Model TS500(PLC) Picture   Principle Medical Waste Incineration Treatment how many burners does the primary have Burn Rate Average

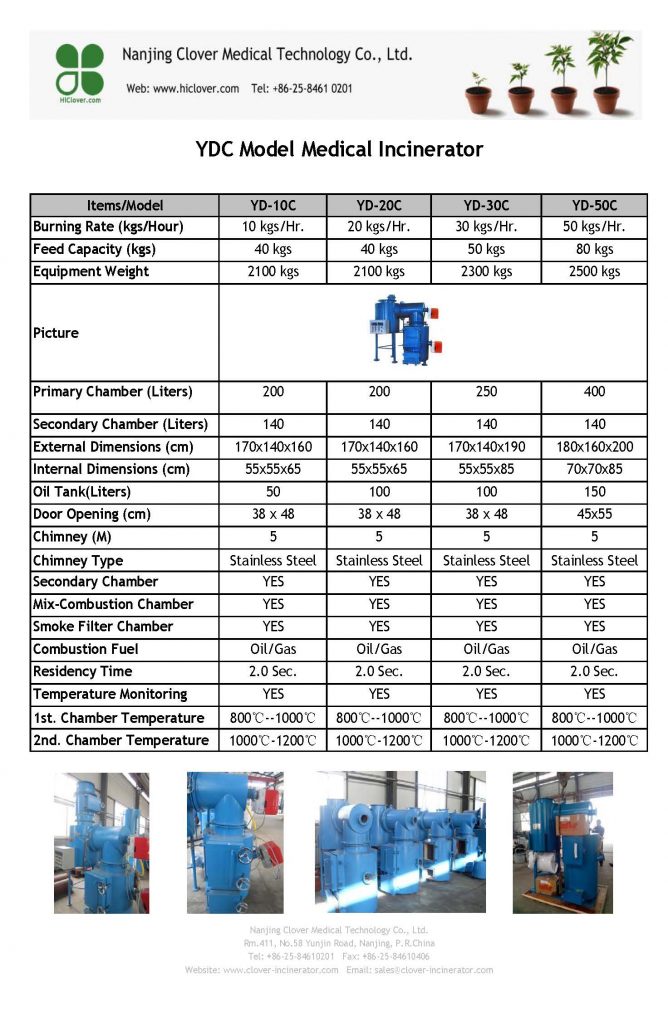

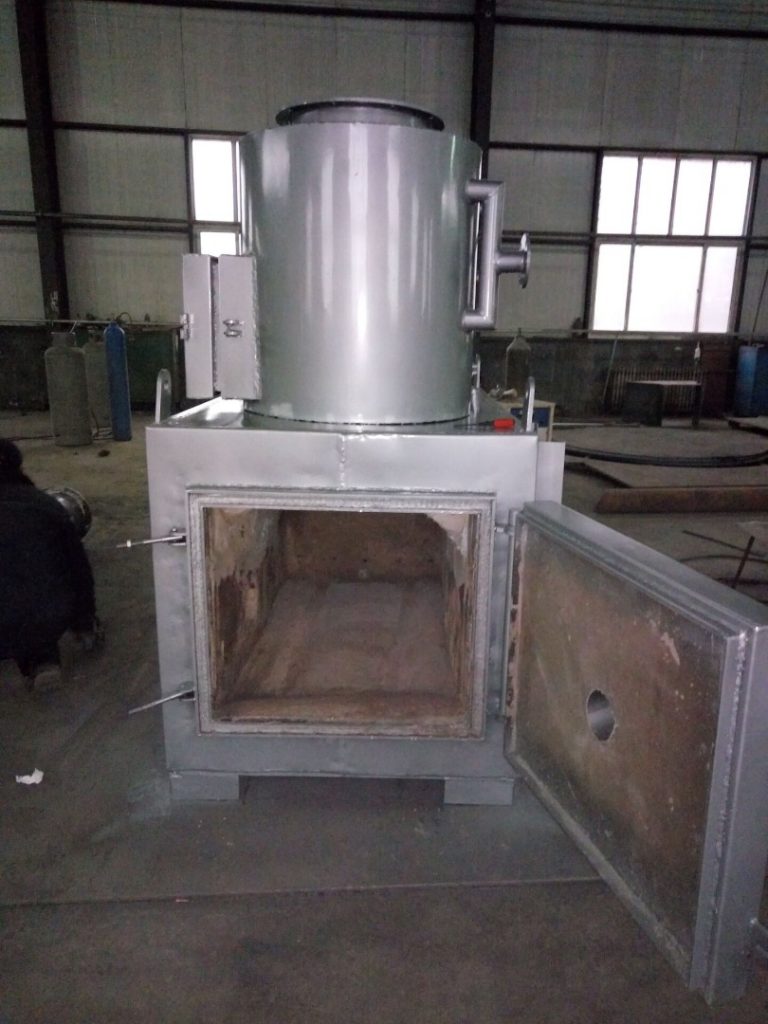

incinerator for poultry farm dead checkin 575 kg, HICLOVER YD50 incinerator or TS50     Model YD-50 Picture   Burning Rate Average 50 kgs/hour Feed Capacity Average 150

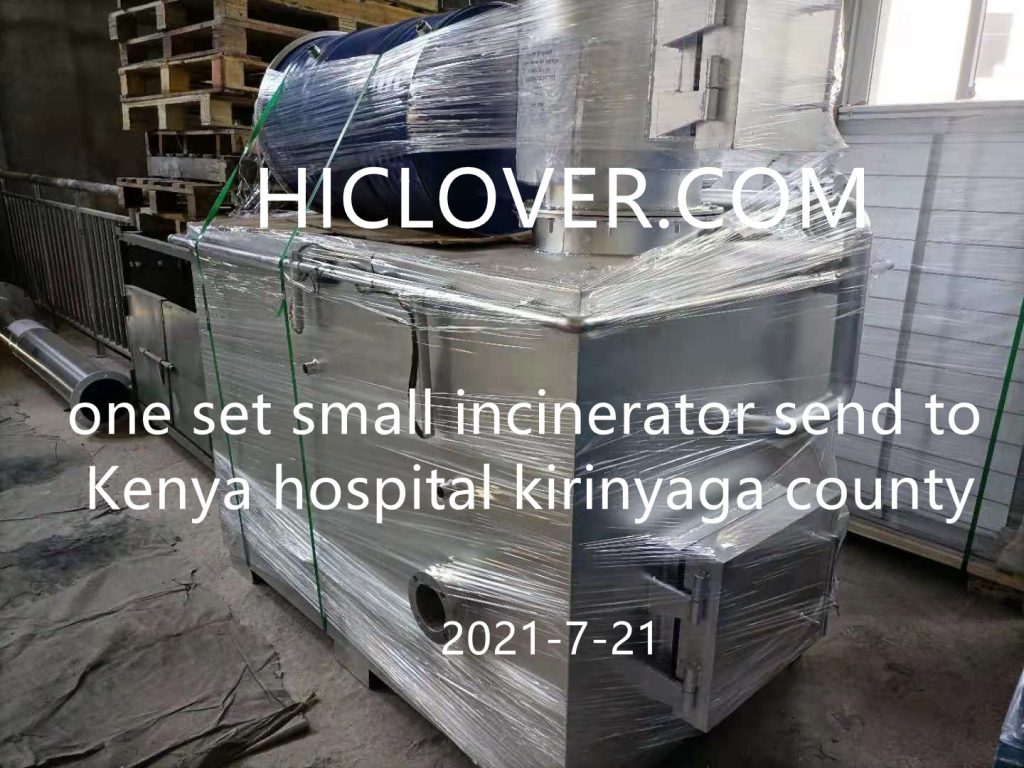

there was one set oil fired incinerator send to Kenya. average capacity 30-50kgs per hour for small hospital.   if

HICLOVER incinerator exert the advantages and discard the disadvantages of the same kind of equipment at domestic and abroad. It is

HICLOVER is growing brand for environmental protection field, and market share with most of Africa, Middle East, Southeast Asia countries and
