medical incinerator pictures

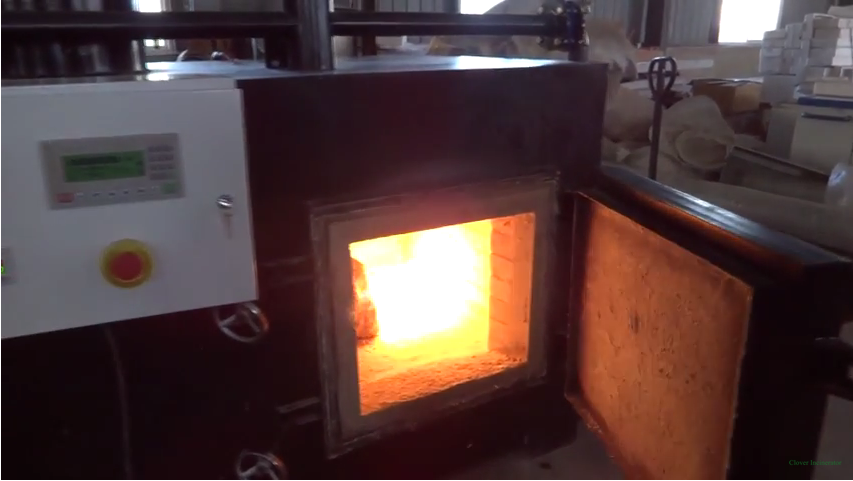

medical incinerator pictures as below for reference. the picture including primary combustion chamber, secondary combustion chamber, auto control plc case, feeding door. other parts including air fan, burners, scrubber, chimney, temperature probe, etc.

we supply 10kgs per hour incinerator to 1000kgs per hour incinerator(per set). contact with us for further questions.



Why are incinerators used in hospitals?
Medical incinerators are designed safely to dispose of harmful materials at high temperatures.

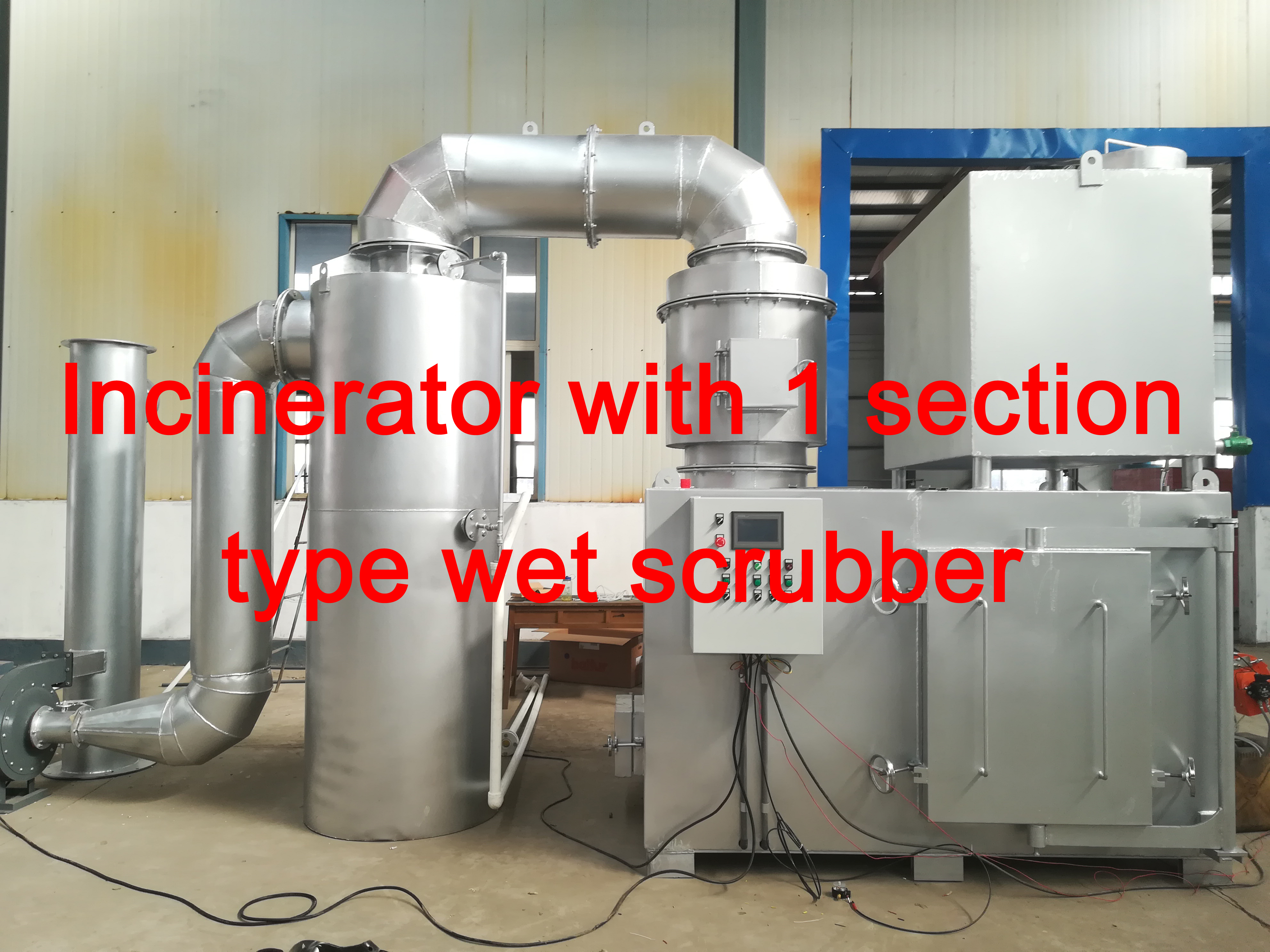

The process ensures no harmful gases are released into the environment. Medical waste incinerators
have scrubbers to clean the polluted gases and other particulate matter.

What are the advantages and disadvantages of incineration?
Advantages Disadvantages
Waste weight reduction by 70% It has high investment and operating costs
Energy recovery possibility (electricity or heat) It has high maintenance costs
If managed well, release of pollutants into the air is low Requires qualified personnel


Nanjing Clover Medical Technology Co.,Ltd.
burning of rubbish
cage incinerator
helth center drug inceneration
incinerator jobs usa
medical waste incinerators in namibia
incinerator v 750m

Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC)
Burn Rate (Average) 10-20 kg/hour 20-30 kg/hour 30-50 kg/hour 50-100 kg/hour
Control Mode PLC Auto. PLC Auto. PLC Auto. PLC Auto.
Combustion Chamber 100L 210L 330L 560L
Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm
Secondary Chamber 50L 110L 180L 280L
Smoke Filter Chamber Dry Scrubber Dry Scrubber Dry Scrubber Dry Scrubber
Feed Mode Manual Manual Manual Manual
Voltage 220V 220V 220V 220V
Power 0.75Kw 0.83Kw 0.99Kw 1.2Kw
Diesel Oil Consumption (kg/hour) Ave.8.4 Ave.10.9 Ave.13.3 Ave.16.9
Natural Gas Consumption (m3n/hour) Ave.10.1 Ave.13 Ave.16 Ave.20.2
Temperature Monitor Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes
Items/Model TS100(PLC) TS150(PLC) TS300(PLC) TS500(PLC)
Burn Rate (Average) 100-150 kg/hour 150-200 kg/hour 300-400 kg/hour 500-600 kg/hour
Control Mode PLC Auto. PLC Auto. PLC Auto. PLC Auto.
Combustion Chamber 1200L 1500L 2000L 3000L
Internal Dimensions 120x100x100cm 150x100x100cm 170x120x100cm 210x120x120cm
Secondary Chamber 600L 750L 1000L 1500L
Smoke Filter Chamber Dry Scrubber Dry Scrubber Dry Scrubber Dry Scrubber
Feed Mode Manual Manual Manual Manual
Voltage 220V 220V 220V 220V
Power 1.38Kw 1.69Kw 2.57Kw 4.88Kw
Diesel Oil Consumption (kg/hour) Ave.20.4 Ave.24.2 Ave.33 Ave.44
Natural Gas Consumption (m3n/hour) Ave.24.5 Ave.29 Ave.39.6 Ave.52.8
Temperature Monitor Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes



The Incinerator units shall be designed to last in operation in a tropical environment for a minimum period of
10 years if the specified maintenance schedule is followed. All metal surfaces (except combustion chamber internal fittings)
shall be either galvanized, enameled, painted or otherwise treated against atmospheric and process induced corrosion
The incinerator combustion chamber(s) should be designed for easy maintenance of all internal parts including the refractory and insulation. Materials used in
the individual parts of the incinerator shall be heat resistance and also be protected against oxidation, corrosion, etc.
The incinerator shell shall be made of mild steel with an adequate thickness for small units of between 3-6mm and larger units 5-10 mm depending on the construction part and painted externally with heat resistant aluminum paint suitable to withstand 250° C.
The outside surface temperature of the incinerator casing should not exceed 50° C above ambient temperature and shall
include a safety mesh around all hot surfaces. Cold face refractory lining of calcium silicate or superior material, minimum thickness 100 mm.
The incinerator units shall include a temperature based electronic combustion control system that utilizes temperature
and other data to inform automated or programmed cycling through the standard burn cycle: pre-heat, burn with
waste addition, burn completion, cool-down. The system shall be capable of varying auxiliary fuel and air supply in both combustion chambers to achieve
optimum combustion conditions. As far as practicable, the incinerator shall be of a plug and play type for ease of installation and commissioning in remote locations.
“The control system shall have a separate push button-based work station, which shall be located adjacent to the loading bay and protected from weather and impact
damage. The system shall allow for rapid and straightforward intervention by the operator if the automatic system is not achieving the desired results during a burn cycle.
