HICLOVER Environmental Protection

HICLOVER, Nanjing Clover Medical Technology Co.,Ltd, supply system solutions for medical environmental

protection, animal and pet cremation engineering, other municipal solid waste incineration project.

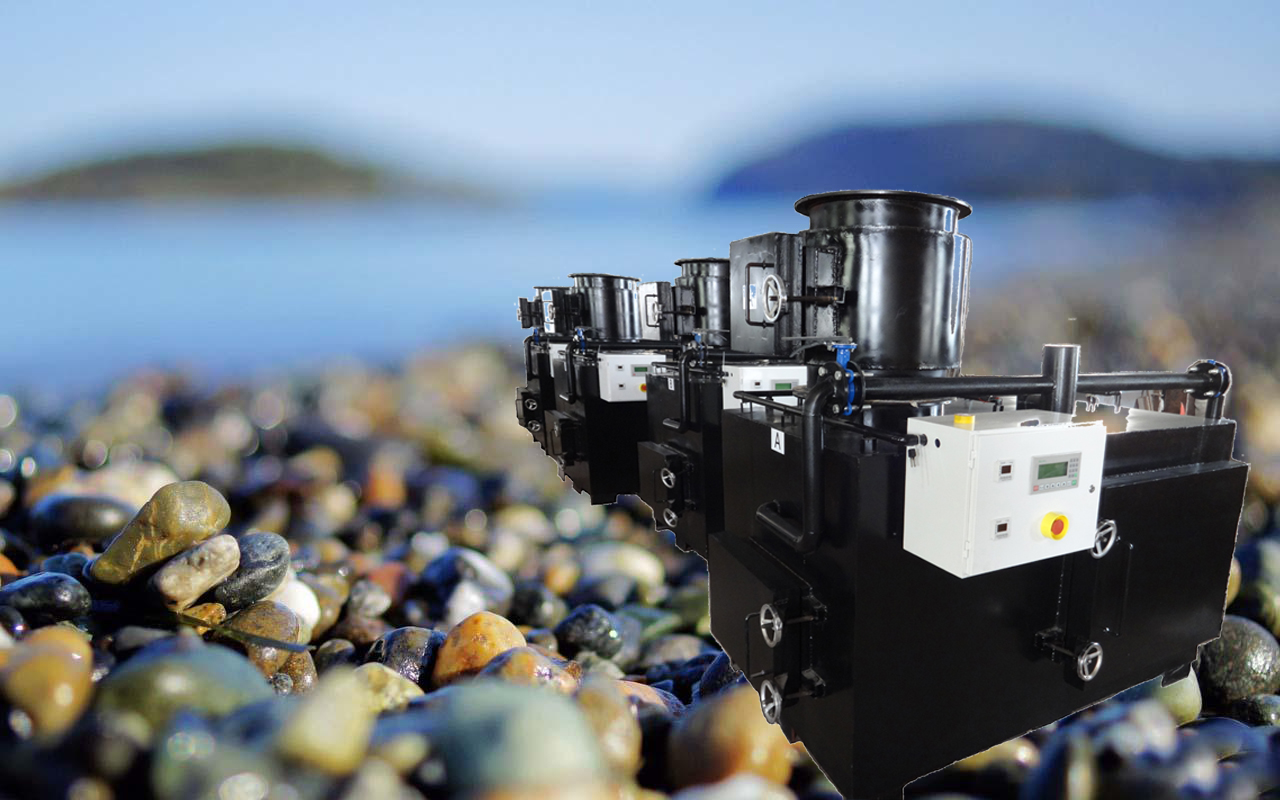

We supply single combustion chamber, double combustion chambers, three combustion chambers and multi-combustion

chambers waste incinerators for laboratory, clinic, hospital, medical center, hygiene clinical waste destruction with medical

disposable, biological waste, medical plastic waste, hazardous waste, red bag waste, needle disposal, gauze and bandages,

sealed sharp containers, pathological waste, trace-chemotherapeutic wastes, etc.


Our range of incinerators cater for small to large scale animal cremation related businesses, such as poultry farms,

cattle farms, sheep farms, pig farms, stables, kennels, testing laboratory, catteries, pet crematoriums.

The incinerator burn waste in primary combustion chamber and burn the smoke from primary combustion chamber

again to make sure environmentally friendly with no black smoke, smelless, reduce pathogenic bacteria infection.

System solutions for medical waste environmental, including waste incineration, smoke emission treatment,

high-temperature sterilization, ultraviolet sterilization lamp, waste shredder, needle destroyer, medical waste package, sharp containers, etc.

Key Features:

— Full range incinerator with Economized Small Scale incinerator, Standard Small-Large Scale incinerator,

General Municipal Solid Waste Incinerator, Pet and Animal Cremation,
Containerized Mobile Incinerator, High Efficient Environmental Waste Incinerator.

— Single combustion chamber, double combustion chambers, three combustion chambers and multi-combustion chambers waste incinerators.

— System solutions for medical waste environmental.

— High burn rate, from 5kgs to 1000kgs per hour.
— New Design for pet animal cremation business.

— HICLOVER, trusted partner with years of experience.

HICLOVER.COM|Email:[email protected]|Tel:+86-25-8461 0201

Provide a secondary chamber with an exterior casing not less than 5 mm conforming to ASTM A1011/A1011M,
with insulation and refractory lining of the same class, type, and thickness required for walls in the primary chamber.
Allow for a minimum dwell time of 0.8 seconds for any condition within normal operating limits.Provide insulation conforming
to ASTM C 612, Class 5 and designed to be used with masonry or reinforced concrete or noncombustible material,
with a fire resistant rating of not less than 3 hours, to prevent damage to the foundation from excessive heat.
As a minimum, provide insulation thickness to limit the temperature of the outer casing to 66 degrees
C 150 degrees F maximum in an ambient temperature of 21 degrees C 70 degrees F when the unit is operating at full-rated capacity. Use insulating cement conforming to ASTM C 195 or ASTM C 196.Provide heat-resistant plastic super-duty fireclay refractory conforming to ASTM C 27. The minimum thickness of plastic or cast able refractory
 is 110 mm 4 for walls and 110 for hearths. Attach refractory walls to the casing with alloy steel or refractory
anchors to form a monolithic structure which will resist heat and support the walls with a safety factor of 4.
 Prevent bulging and destruction of refractory due to heat stress by reinforcing, expansion joints, ties, and anchors.a. Provide doors for stoking, cleanout, and charging areas, with securely attached door frames. Construct doors and
 frames of steel conforming to ASTM A1011/A1011M. Line doors, exposed to flame or direct heat of combustion gases,
with the same type and thickness of refractory and insulation used in the combustion chamber.Secure refractory to
 the doors so as to prevent sagging. Taper refractory edges to clear door frames during movement of swinging doors.
Weld alloy steel hooked bars to door cover to anchor the refractory, to enable safe operation by one person,
 and maintaining temperature of door handles to permit operation of doors without gloves or other protective devices.
