Q: what is kind of waste can use in this equipment?
A: This equipment for medical waste, pet animal, Municipal waste, live waste.

Prohibit any explosive and radiation material, liquid waste and gas waste.

Q: Incinerator Smoke Standard
A: China Government Standard: No.GB18484-2001.

Q: Treatment capacity
A: Average Capacity calculated by medical waste(lower calorific power (L.C.P): 3.0TH Kcal/Kg per hour),

not mean any waste material. The animal/pet combustion rate around 2/3 of average capacity.

Clover incinerator use time per day up to 24 hours. Between each feed/combustion time, there are about 0.5-1 hours cooling time and time for feeding waste. Actual combustion time per day is around 16 hours.

The lifetime of incinerator between 5-10 year according to use.

Generally, we proposal small laboratory, small clinic use capacity under 20 kgs per hour. When incinerator

use in hospital, please calculate the waste output capacity around 2kgs per people per day. If there are

200 sickbed in the hospital, that’s mean you need one incinerator capacity around 400kgs per day, change

to capacity per hour is around 30-40 kgs per hour. According the operation time per day, waste material,

budget, development, etc, you can use capacity from 30-50 kgs per hour incinerator.
*How to calculate Animal Cremation Burn Rate: 2/3 of the medical waste.

Q: Assembly and Testing
A: We supply all documents and incinerators easy to installation and operation. Customer can send people

come to our factory to learn installation and operation. Generally, We do not send engineer to local

site if not request. The dispatch cost is extra according to order.

Q: Combustion Temperature
A: The first combustion chamber: 800-1000 centi degree.
The second combustion chamber: 1000-1200 centi degree.

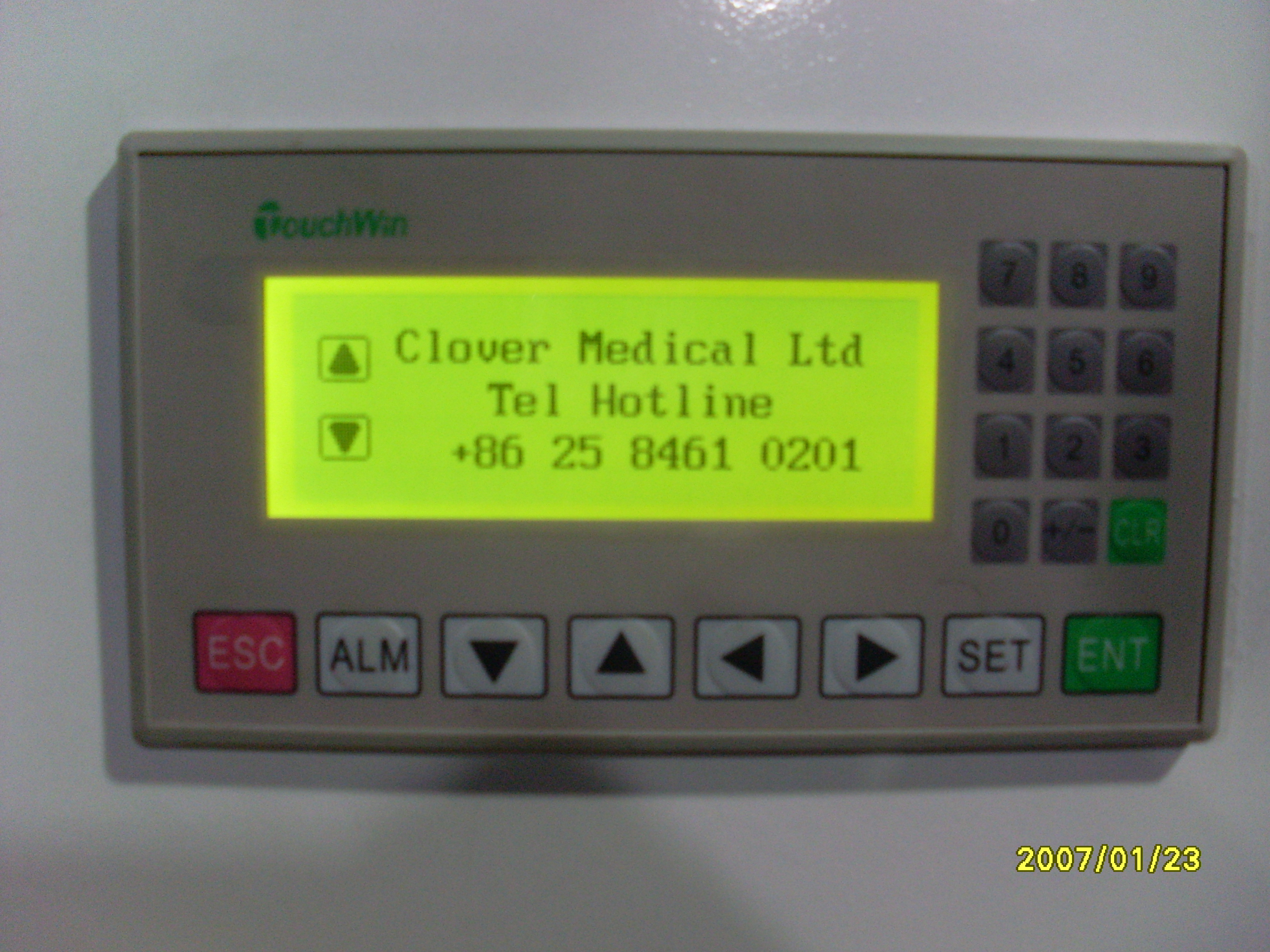

Q: Incinerator Control Mode
A: Default Control mode is common control case. PLC mode according to model and order.

Q: Operation and maintenance costs
A: Operation cost according to fuel consumption rate and power/staff, etc.

Annual around $500-$1000usd per year maintenance according model, use situation.

One person can service 02 unit incinerators. The staff should have basic electrician knowledge to

operate/inspect/maintaince incinerator/burner/blower according to operation user guider, and

know risk of medical waste to protect worker self with necessary protection element.

Q: The Residency time in secondary combustion chamber
A: 02 sec.

WWW.HICLOVER.COM｜Waste Incinerators ｜Auto Roll Air Filters

Nanjing Clover Medical Technology Co.,Ltd.

Tel: +86-25-8461 0201

Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]

Items/Model	TS10(PLC)	TS20(PLC)	TS30(PLC)	TS50(PLC)	TS100(PLC)
Burn Rate (Average)	10 kg/hour	20 kg/hour	30 kg/hour	50 kg/hour	100 kg/hour
Feed Capacity(Average)	20kg	40kg	60kg	100kg	200 kg
Control Mode	PLC	PLC	PLC	PLC	PLC
Combustion Chamber	100L	210L	330L	560L	1200L
Internal Dimensions	50x50x40cm	65x65x50cm	75x75x60cm	100x80x70cm	120x100x100cm
Secondary Chamber	50L	110L	180L	280L	600L
Smoke Filter Chamber	Yes	Yes	Yes	Yes	Yes
Feed Mode	Manual	Manual	Manual	Manual	Manual
Voltage	220V	220V	220V	220V	220V
Power	0.5Kw	0.5Kw	0.5Kw	0.7Kw	0.7Kw
Oil Consumption (kg/hour)	5.4–12.6	7.8–16.3	10.2–20	12.1–24	14–28
Gas Consumption (m3/hour)	6.2–11.4	8–15.7	9.8–20	9.9–26.1	10–32.2
Temperature Monitor	Yes	Yes	Yes	Yes	Yes
Temperature Protection	Yes	Yes	Yes	Yes	Yes
Oil Tank	100L	100L	100L	100L	200L
Feed Door	30x30cm	45x40cm	55x50cm	70x55cm	80x60cm
Chimney	3Meter	3Meter	5Meter	5Meter	10Meter
Chimney Type	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
1st. Chamber Temperature	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃
Residency Time	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.
Gross Weight	1500kg	2200kg	3000kg	4500kg	6000kg
External Dimensions	140x90x120cm	160x110x130cm	175x120x140cm	230x130x155cm	260x150x180cm

Provide incinerator with a capacity of not less than [75] kg per hour, based on operating the incinerator no

more than 8 hours continuously per day, and to be suitable for burning medical waste parts which have a water content as high as 85 percent by weight.

Provide furnace with an inside volume, exclusive of the space occupied by the refractory hearths and walls,

of not less than 2 cubic meters with a primary combustion chamber volume above the burning hearth of not

less than 1.5 cubic meters, Provide a complete waste burning system including combustion air fan, primary

and secondary burners, air distribution and burner controls, ducts, breeching, stack, bottom ash conveyor

and collection, feed rams, fire tube water tube, air compressors, slurry pumps, water pumps, fly ash collection system.

Construct the primary chamber with a steel casing supported by a steel frame, and provide with insulation

and refractory. Make the casing with 5 mm sheet steel minimum, conforming to ASTM A1011/A1011M and

reinforced to withstand internal pressures without deflection or damage to refractory or other components

of the incinerator. Construct the frame and all reinforcing members of steel conforming to ASTM A36/A36M. Provide a free-standing frame capable of supporting the weight of all components of the incinerator, including doors,

burners, breeching, stack connections, and appurtenant assemblies without binding or warping.

Make the frame and casing of all welded construction, completed and erected prior to installation of the

refractory and insulation. Provide all access doors and parts with seals to prevent emission of smoke or

admission of significant amounts of air during incinerator operation, and a primary chamber with no

openings which would permit leakage of waste fluids.
