can be managed in an environmentally safe manner.
Using the General Requirements and specific requirements on this section, the contractor shall supply, install, commission, and
provide training and spare parts (for scheduled one year) of an Incinerator.
The contractor shall supply, install, commission, and provide training and spare parts (for scheduled one year) an incinerator camps. The
proposed Incinerator should have the following specification parameters or approve equal. Bidder should elaborate the proposed variance of
any portion of this specifications and the impact it might have on the desired general propose of the incinerators.
Tel: +86-25-8461 0201
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
|
WASTE INCINERATOR MINIMUM SPECIFICATION: |
|
|
Feed Capacity |
600 |
|
Burning Rate |
Min. 300 kgs per hour |
|
Burning Time per Feed |
2-4 hours |
|
Voltage |
380V |
|
Power |
1.48Kw |
|
Frequency |
50 Hz |
|
Fuel |
Natural Gas or Diesel Oil |
|
Feed Mode |
Manual |
|
Fuel Consumption (Oil) |
Max 40 kgs per hour |
|
Fuel Consumption (Gas) |
Max |
|
Waste Combustion Chamber |
2400 liters |
|
Post Combustion Chamber |
1200 liters |
|
Oil Tank Capacity |
500 liters |
|
Chimney |
|
|
Chamber Material |
Firebrick, Refractory Concrete |
|
Max. Heat Value |
340,000 Kcal per hour |
|
Operation Technical Specification |
|
|
Solid Chamber Temperature |
800 Deg. C C 1000 deg. C |
|
Gas Chamber Temperature |
1000 Deg. C C 1200 Deg. C |
|
Chamber Anti-Rate |
1450 Deg. C |
|
Residency Time |
2.0 Sec. |
|
Burning efficiency |
> 98% |
|
Waste Lower Calorific Power |
3000 Kcal |
electrostatic precipitators.
The contractor shall provide and install incinerators that meet the following emission and operating standards: Combustion
efficiency (C.E.) shall be at least 99.0%. The combustion efficiency shall be computed as followed:
C.E=(CO2X100)/(%CO2 +%CO)
The primary combustion chamber shall be as the primary combustion zone and shall be equipped with a burner/s burning gas or low
sulphur liquid fuel. Primary air supply is to be controlled efficiently.
The secondary combustion chamber shall be as the secondary combustion zone and shall be fitted with a burner/s burning gas or low
sulphur liquid fuel.

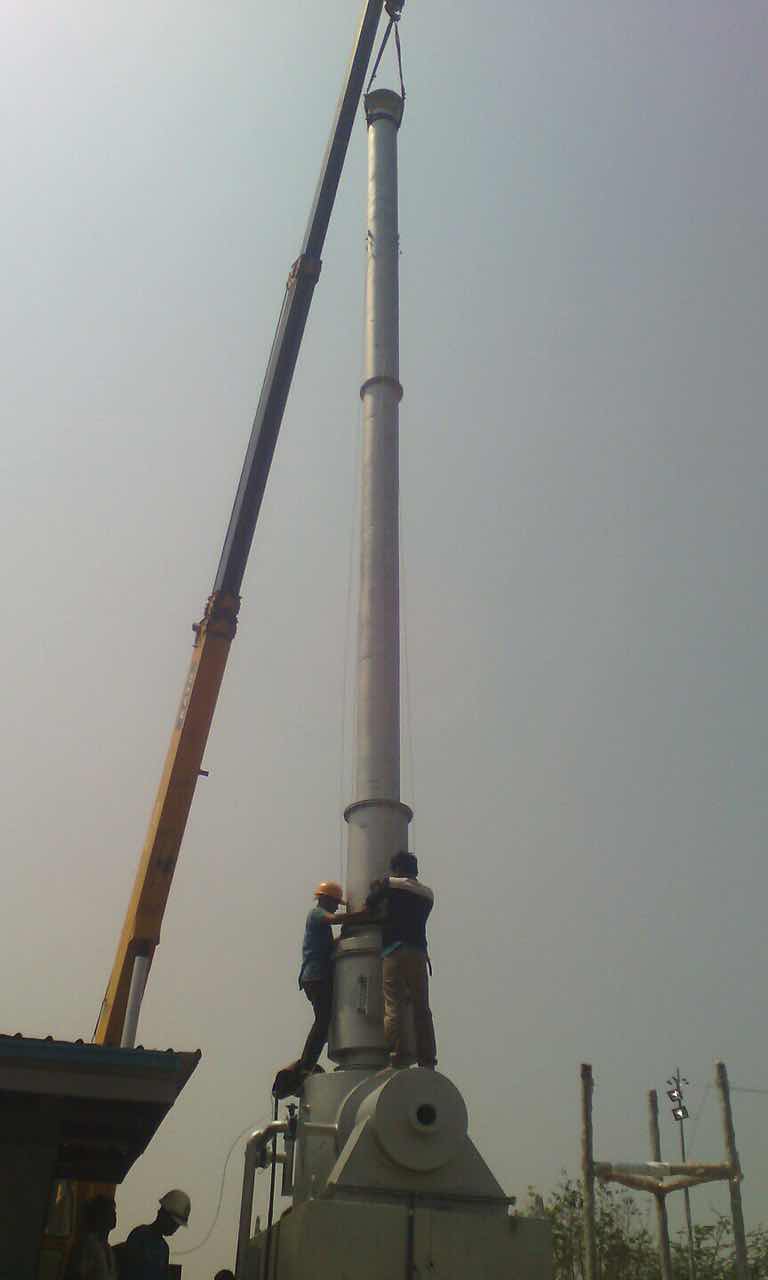

The exhaust gas stack (chimney) shall extend above the general terrain in the immediate vicinity of the plant, in order to disperse
the combustion gas products adequately. The chimney shall have a minimum height of nine (9) meters above ground level and clear the highest
point of the building by not less than six (6) meters for flat roofs or 3 meters for pitched roofs. The topography and height of adjacent
buildings (i.e. closer than 5 meters chimney height) shall be taken into account. There shall not be any security threats to the adjacent
buildings due to the installation of gas stack.
