Waste Incineration Treatment Model TS75(PLC)

Average 50-100 kg/hour Burn Rate




Items/Model

TS75(PLC)

Principle

Waste Incineration Treatment

Burn Rate

Average 50-100 kg/hour

Feed Capacity

Average 200-300 kg/feeding

Control Mode

PLC(Programmable Logic Controller Incinerator)

Face Oil Paint

800

Combustion Chamber

768 Liters (0.768M3)

Internal Dimensions

1200x800x800mm

Secondary Chamber

384 Liters (0.384M3)

Smoke Filter Chamber

Yes

Feed Mode

Manual

Voltage

210/240V 50Hz 1P

Power

1.3Kw

Oil Consumption (kg/hour)

Average 20.4(D.O)

Thermal capacity(kw/hour)

166-332

Gas Consumption (m3/hour)

***

Temperature Monitor

Digital Display

Oil Tank

3000L

Feed Door

60x50cm

Chimney

10Meter

Chimney Type

Stainless Steel

1st. Chamber Temperature

800-1000

2nd. Chamber Temperature

1000-1200

Residency Time

2.0 Sec.

Gross Weight

7500kg

External Dimensions

260x160x250cm(without chimney)

We supply single combustion chamber, double combustion chambers, three combustion chambers and multi-combustion

chambers waste incinerators for laboratory, clinic, hospital, medical center, hygiene clinical waste destruction with medical

disposable, biological waste, medical plastic waste, hazardous waste, red bag waste, needle disposal, gauze and bandages,

sealed sharp containers, pathological waste, trace-chemotherapeutic wastes, etc.



Our range of incinerators cater for small to large scale animal cremation related businesses, such as poultry farms, cattle

farms, sheep farms, pig farms, stables, kennels, testing laboratory, catteries, pet crematoriums.

The incinerator burn waste in primary combustion chamber and burn the smoke from primary combustion chamber again to

make sure environmentally friendly with no black smoke, smelless, reduce pathogenic bacteria infection.

System solutions for medical waste environmental, including waste incineration, smoke emission treatment, high-temperature

sterilization, ultraviolet sterilization lamp, waste shredder, needle destroyer, medical waste package, sharp containers, etc.

The pet cremation equipment humanized design with movable platform, small space covers for modern pet cremation

business owner all over the world.

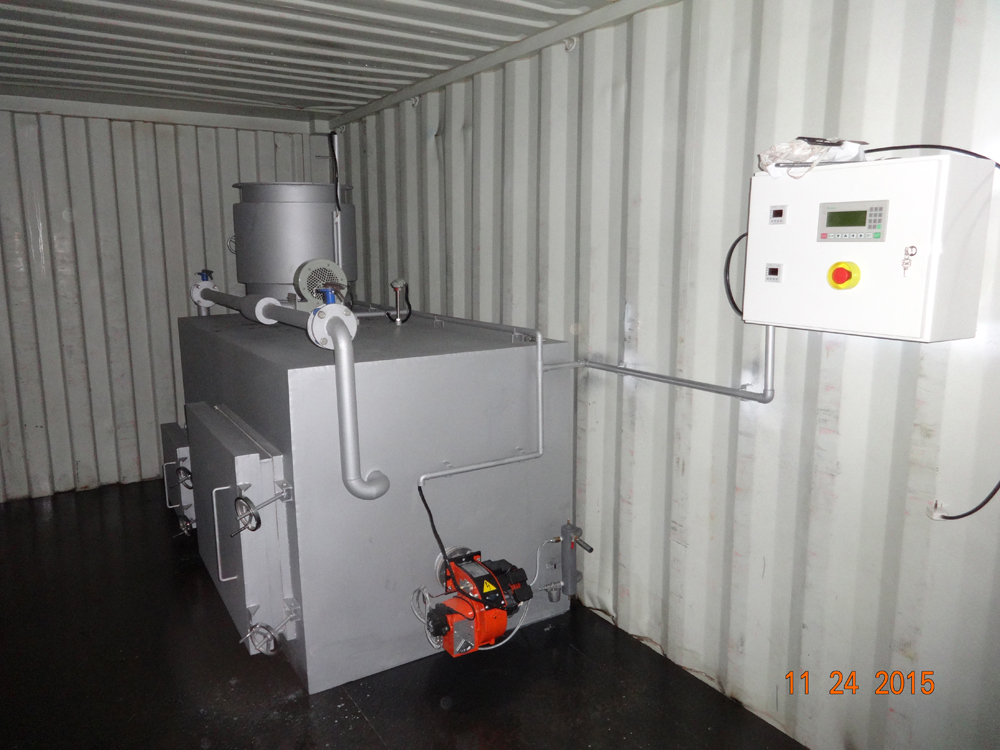

The containerized mobile incinerator mounted in ISO container before leave factory, pre-installation, no incineration house

build construction, movable by truck and ultraviolet lamp sterilization inside.

We are growing brand for environmental protection field, and market share with most of

Africa, Middle East, Southeast Asia countries and part of North America, Europe territory. We are trusted partner for governmental

organizations, non-profit organizations, international contractors, logistics organizations, military, pet cremation business owners, etc.

We have export experience more than 40 countries, including war zone like Iraq, Afghanistan, Somalia, South Sudan.

We are china incinerator manufacturer, contractor and exporter. Manufacturer make reasonable price for incinerator customer,

supply medical incinerator, hospital incinerator, animal incinerators, hog incinerators, pet cremation equipment, small incinerator,

pet incinerator, animal incinerator, portable incinerator, small animal incinerator, infectious waste pyrolysis machine, laboratory

incinerator.
