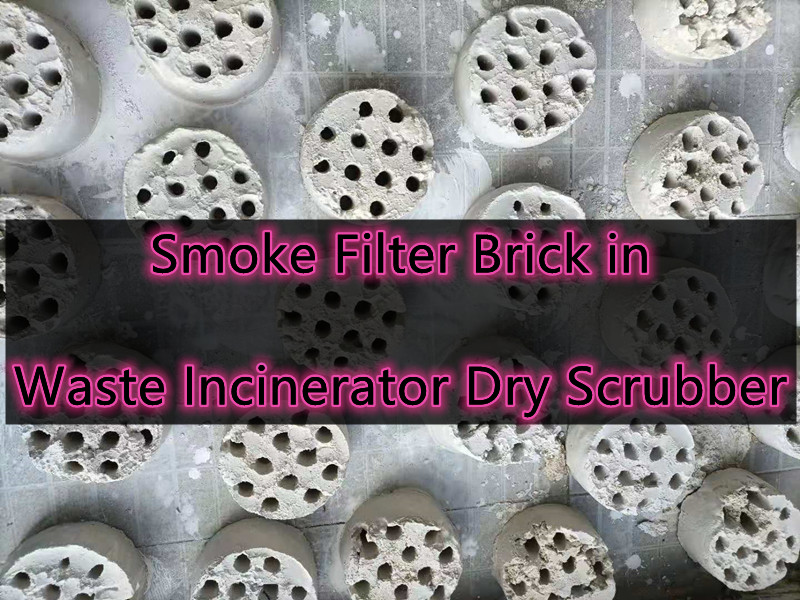

Smoke Filter Brick in Waste Incinerators Dry Scrubber Smoke Filter Chamber. the main material is calcium hydroxide.
how to make Smoke Filter Brick? and how much Smoke Filter Brick?
Contact with us now!
| Incinerator Items/Model | HICLOVER TS5(PLC) | HICLOVER TS10(PLC) | HICLOVER TS20(PLC) | HICLOVER TS30(PLC) |
| Burn Rate (Average) | 5-10 kg/hour | 10-20 kg/hour | 20-30 kg/hour | 30-50 kg/hour |
| Feed Capacity(Average) | 10kg/feeding | 20kg/feeding | 40kg/feeding | 60kg/feeding |
| Control Mode | PLC Automatic | PLC Automatic | PLC Automatic | PLC Automatic |
| Combustion Chamber | 52L | 100L | 210L | 330L |
| Internal Dimensions | 50x35x30cm | 50x50x40cm | 65x65x50cm | 75x75x60cm |
| Secondary Chamber | 26L | 50L | 110L | 180L |
| Smoke Filter Chamber | Yes | Yes | Yes | Yes |
| Feed Mode | Manual | Manual | Manual | Manual |
| Voltage | 220V 2P | 220V 2P | 220V 2P | 220V 2P |
| Power | 0.5Kw | 0.5Kw | 0.5Kw | 0.5Kw |
| Burner Type | Italy Brand | Italy Brand | Italy Brand | Italy Brand |
| Oil Consumption (kg/hour) | 4 | 6 | 8 | 12 |
| Gas Consumption (m3/hour) | 6.2-11.4 | 6.2-11.4 | 8-15.7 | 9.8–20 |
| Temperature Monitor | Yes | Yes | Yes | Yes |
| Temperature Thermometer | Corundum Probe Tube | Corundum Probe Tube | Corundum Probe Tube | Corundum Probe Tube |
| Temperature Protection | Yes | Yes | Yes | Yes |
| Automatic Cooling | Yes | Yes | Yes | Yes |
| Automatic False Alarm | Yes | Yes | Yes | Yes |
| System Testing Model | Yes | Yes | Yes | Yes |
| Time Setting | Yes | Yes | Yes | Yes |
| Progress Display Bar | LCD Display | LCD Display | LCD Display | LCD Display |
| Oil Tank | 200L | 200L | 200L | 200L |
| Oil Tank Stand | 190cm Height | 190cm Height | 190cm Height | 190cm Height |
| Liquid level Display | Yes | Yes | Yes | Yes |
| Feeding Door | 20x20cm | 30x30cm | 45x40cm | 55x50cm |
| Chimney | 2Meter | 3Meter | 3Meter | 5Meter |
| Chimney Type | Stainless Steel 304 | Stainless Steel 304 | Stainless Steel 304 | Stainless Steel 304 |
| 1st. Chamber Temperature | 800℃–1000℃ | 800℃–1000℃ | 800℃–1000℃ | 800℃–1000℃ |
| 2nd. Chamber Temperature | 1000℃-1300℃ | 1000℃-1300℃ | 1000℃-1300℃ | 1000℃-1300℃ |
| Residency Time | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. |
| Gross Weight | 1000kg | 1500kg | 2200kg | 3000kg |
| External Dimensions | 120x80x110cm | 140x90x120cm | 160x110x130cm | 175x120x140cm |
