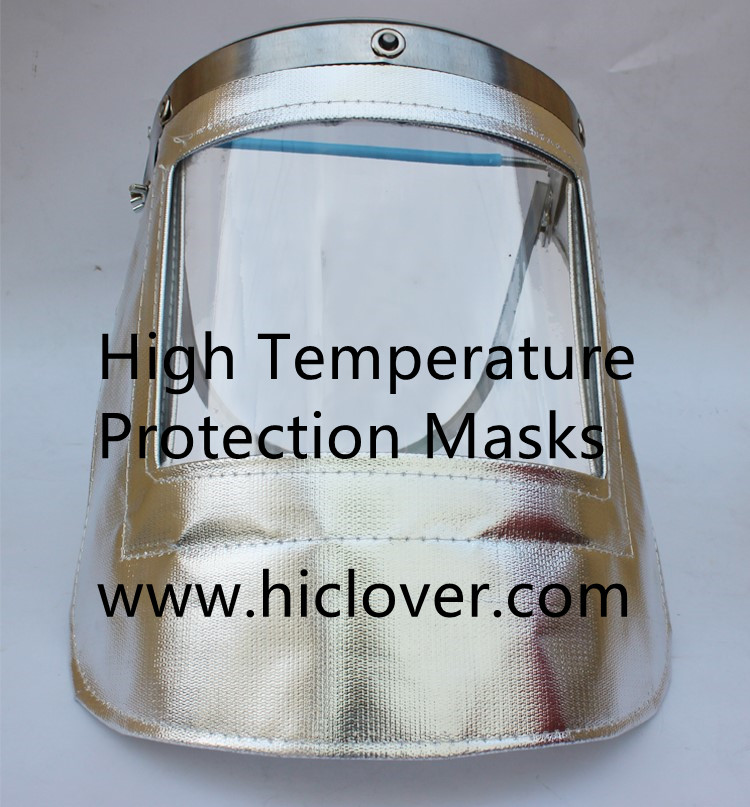

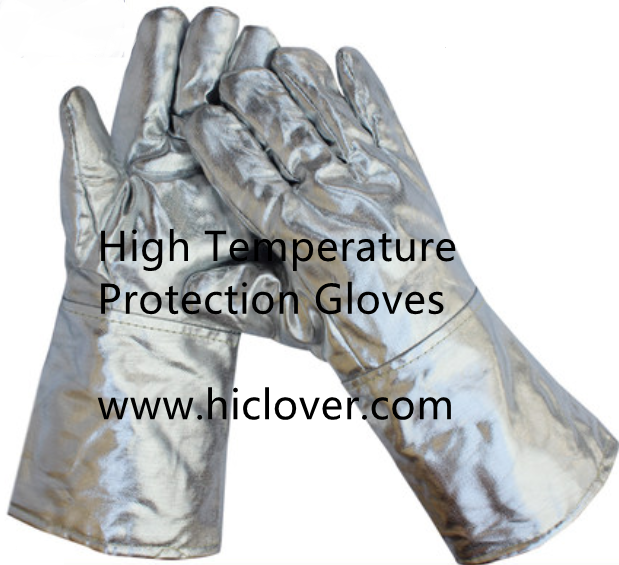

High Temperature Protection Gloves and
High Temperature Protection Masks for incinerator operation
Tel: +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
how to incinerate aerosol spray
incinerator for sanitary napkins for schools
dial thermometer for incinerators
mobile incinerator medical waste
what are the costs and benefits of building a brick incinerator for hospital
drum inceniration
| Items/Model | TS10(PLC) | TS20(PLC) | TS30(PLC) | TS50(PLC) | |
| Burn Rate (Average) | 10 kg/hour | 20 kg/hour | 30 kg/hour | 50 kg/hour | |
| Control Mode | PLC Auto. | PLC Auto. | PLC Auto. | PLC Auto. | |
| Combustion Chamber | 100L | 210L | 330L | 560L | |
| Internal Dimensions | 50x50x40cm | 65x65x50cm | 75x75x60cm | 100x80x70cm | |
| Secondary Chamber | 50L | 110L | 180L | 280L | |
| Smoke Filter Chamber | Dry Scrubber | Dry Scrubber | Dry Scrubber | Dry Scrubber | |
| Feed Mode | Manual | Manual | Manual | Manual | |
| Voltage | 220V | 220V | 220V | 220V | |
| Power | 0.75Kw | 0.83Kw | 0.99Kw | 1.2Kw | |
| Diesel Oil Consumption (kg/hour) | Ave.8.4 | Ave.10.9 | Ave.13.3 | Ave.16.9 | |
| Natural Gas Consumption (m3n/hour) | Ave.10.1 | Ave.13 | Ave.16 | Ave.20.2 | |
| Temperature Monitor | Yes | Yes | Yes | Yes | |
| Temperature Protection | Yes | Yes | Yes | Yes | |
| Items/Model | TS100(PLC) | TS150(PLC) | TS300(PLC) | TS500(PLC) | |
| Burn Rate (Average) | 100 kg/hour | 150 kg/hour | 300 kg/hour | 500 kg/hour | |
| Control Mode | PLC Auto. | PLC Auto. | PLC Auto. | PLC Auto. | |
| Combustion Chamber | 1200L | 1500L | 2000L | 3000L | |
| Internal Dimensions | 120x100x100cm | 150x100x100cm | 170x120x100cm | 210x120x120cm | |
| Secondary Chamber | 600L | 750L | 1000L | 1500L | |
| Smoke Filter Chamber | Dry Scrubber | Dry Scrubber | Dry Scrubber | Dry Scrubber | |
| Feed Mode | Manual | Manual | Manual | Manual | |
| Voltage | 220V | 220V | 220V | 220V | |
| Power | 1.38Kw | 1.69Kw | 2.57Kw | 4.88Kw | |
| Diesel Oil Consumption (kg/hour) | Ave.20.4 | Ave.24.2 | Ave.33 | Ave.44 | |
| Natural Gas Consumption (m3n/hour) | Ave.24.5 | Ave.29 | Ave.39.6 | Ave.52.8 | |
| Temperature Monitor | Yes | Yes | Yes | Yes | |
| Temperature Protection | Yes | Yes | Yes | Yes | |
All electrical connections attached with the incinerator and other machinery should
be provided with suitable and necessary safety devices and be protected by steel
conduits, cable trays, and supports. YES/NO
The manufacturer should permanently mark on the incinerator indicating: (i)
manufacturer’s name or trademark (ii) style, type, model or, date of manufacture
of the incinerator (iii) capacity in terms of net designed heat release in heat units per
timed period (i.e., British Thermal Units per hour, mega joules per hour, kilocalories per hour).
Operations store “The unit shall be supplied with a lockable operations store, that
shall be initially supplied with the following consumables:
• A first aid kit, suitable for addressing the hazards presented by the unit.
• 5 full sets of personal protective clothing and equipment.
• Operating logbooks.
• Unit cleaning equipment.
• Unit routine maintenance equipment and associated spare parts.
• Lubricants as appropriate.
• 3 Fire extinguishers.
• Any other consumables considered necessary by the Supplier.
Installation and Commissioning, Operator training, Spare parts package and Maintenance
Installation and commissioning The unit shall allow for easy and quick installation without
specialized tools/equipment and without high skilled manpower required, optimizing the
number of assembly/installation steps with separate items reduced to a practicable, shipment weight.
The assembly and installation process shall be designed to be reversible, to facilitate
rapid disassembling and re-packing without damaging the parts of the products itself.
All tools/equipment must be simple to use, of highest quality and meet international standards.
Team compositions and tools/equipment list/description shall be detailed in the
assembly, disassembly and Packing Manuals. Provision for the use of video weblinks
(in English with French and Arabic subtitles) showing the assembly process and,
separately, the disassembly process is required. Manuals are to be produced in English and French.
1. Medical waste incinerator – Small
2. Medical waste incinerator – Medium
3. General waste incinerator – Small
4. General waste incinerator – Medium
5. General waste incinerator – Large
5. General waste incinerator – Large with automated feeding system
Corrosion resistance and weather proofing The Incinerator units shall be designed
to last in operation in a tropical environment for a minimum period of 10 years if the
specified maintenance schedule is followed. All metal surfaces (except combustion
chamber internal fittings) shall be either galvanized, enameled, painted or otherwise
treated against atmospheric and process induced corrosion
The incinerator combustion chamber(s) should be designed for easy maintenance
of all internal parts including the refractory and insulation. Materials used in the
ndividual parts of the incinerator shall be heat resistance and also be protected
against oxidation, corrosion, etc.
The incinerator shell shall be made of mild steel with an adequate thickness
for small units of between 3-6mm and larger units 5-10 mm depending on the
construction part and painted externally with heat resistant aluminum paint
suitable to withstand 250° C. The outside surface temperature of the incinerator
casing should not exceed 50° C above ambient temperature and shall include a
safety mesh around all hot surfaces. Cold face refractory lining of calcium silicate
or superior material, minimum thickness 100 mm.
Combustion control system The incinerator units shall include a temperature
based electronic combustion control system that utilizes temperature and other
data to inform automated or programmed cycling through the standard burn
cycle: pre-heat, burn with waste addition, burn completion, cool-down. The
system shall be capable of varying auxiliary fuel and air supply in both combustion
chambers to achieve optimum combustion conditions. As far as practicable,
the incinerator shall be of a plug and play type for ease of installation and
commissioning in remote locations.
“The control system shall have a separate push button-based work station,
which shall be located adjacent to the loading bay and protected from weather
and impact damage. The system shall allow for rapid and straightforward intervention
by the operator if the automatic system is not achieving the desired results during a burn cycle.
