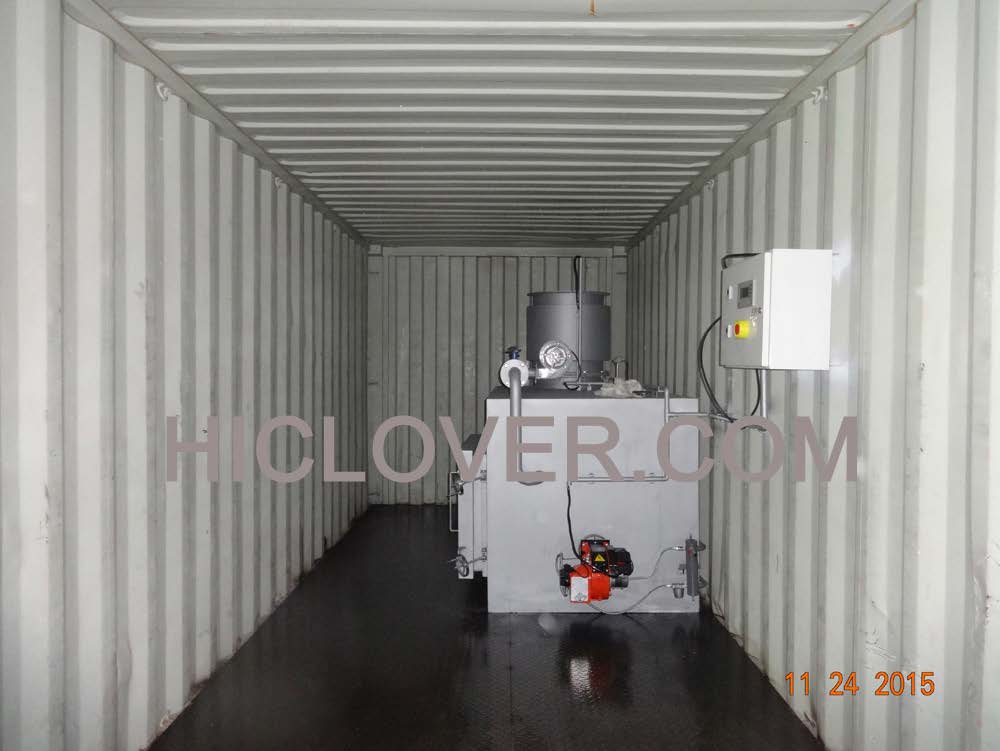

Containerized Mobile Incinerator CA100

Incinerator Model CA100, Overview


100Kg/Hour Burning rate with Secondary burning Capacity


This model is small-scale medical waste incineration equipment. Construction is dual/double

combustion chamber with 02 units oil burner, batch load incineration equipment. Animal feed
chamber is 560Liters (Model CA100). Primary & Secondary combustion chambers and smoke
filter chamber with firebrick and  refractory concrete chamber. Batch load on the bottom of
chamber. Incinerator panel control suit for local operation.

Model

CA100

Waste Treatment

Medical Waste Incineration Treatment

Feed Capacity

Average 100-200 kgs per feed

Burning Rate

Average 100-120 kgs per hour

Burning Time per Feed

Average 1-2 hour

Control Mode

PLC(Programmable Logic Controller Incinerator)

Voltage

220V

Power

1.0Kw

Fuel

Diesel oil

Burner

Italy Burner

Feed Mode

Manual

Temperature Monitor

Digital Display

Fuel consumption (Oil)

Average 20.4 Kgs/Hour

Internal Dimensions

100x80x70cm (Primary Combustion Chamber)

External Dimensions

230 x 130 x 155cm (main body)

Waste combustion chamber

560Liters

Post Combustion Chamber

280Liters

Oil Tank Capacity

200 Liters

Door Opening

70 x 50cm

Chimney

5.0M

Gross Weight

4500kgs

Chamber Material

Firebrick ,Refractory Concrete

Max. Heat Value

166,000Kcal/Hr.

Operation Technical Specifications

Solid Chamber temperature

8000C -10000C

Gas Chamber temperature

10000C -12000C

Chamber Anti-Rate

17500C

Residency time

2.0 Sec.

Burning efficiency

98%

Waste Lower Calorific Power

3000Kcal

Pre-assembled, containerized type,do not included chimney installation.Burning rate: 100 – 120kg / hour.
Minimum operating temperature 800-1000 degree.Maximum operating temperature:1000-1200 degree.
Secondary Burning capacity.Density insulation.Refractory casting.Heavy duty refracting lining to
withstand 1750 degree.Fuel type: fuel oil (diesel).
