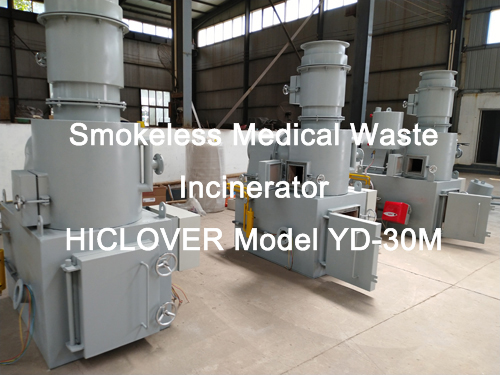

Smokeless Medical Waste Incinerator HICLOVER Model YD-30M

Model YD-30M
Primary Combustion Chamber
Secondary Combustion Chamber
Mix Combustion Chamber
Smoke Filter Chamber
Incinerator  Control Case
Stainless Steel Chimney: 1.5 Meter
Italy oil/gas burner: 02 sets
Oil Tank (if oil fuel): 100Liters

Model YD-30M
Burning Rate  average 20 kgs/hour
Feed Capacity average 40 kgs/feeding
Paimary Combustion Chamber 200 Liters
Secondary Combustion Chamber 100 Liters
Mix Combustion Chamber Yes
Feed Mode Manual
Voltage 220V
Power 0.59Kw
Fuel Type Diesel Oil/Natural Gas/LPG
Burner Italy Original
Oil Consumption (Diesel Oil) average 8.4 kg/hour
Gas Consumption (Natural Gas) average 10.1 m3n/hour
Internal Dimensions 80 x 50 x 50cm (primary chamber)
External Dimensions 160*110*230cm (without chimney)
Temperature Monitor Yes
Oil Tank Capacity(if oil fuel) 100 Liters
Door Opening 40 x 36cm
Chimney Length 1.5 Meters
Chimney Type Stainless Steel
Equipment Gross Weight 1700 kgs
Operation Technical Specifications
Primary Chamber Temperature 800–1000
Secondary Chamber Temperature 1000-1200
Residency Time 2.0 Sec.
Burning Efficiency 98%
Waste Lower Calorific Power 3000Kcal

• Burning Waste: Medical Waste

• Fuel: diesel type, or gas type(natural gas or lpg), or both(exhcange oil-gas burner)

• Processing Capacity: 15 – 20 kg/hr

• Door Size: 400mm x 360mm

• Body Size: 1600*1100*2300mm(without chimney)

• Operating Temperature: 800 – 1200 deg. C

• Double Chamber: Primary and Secondary Chambers

• Internal lining:refractory cement

• Monitoring Facility for:

• Supplied complete with chimney

• Power Supply: 220-240V, 50Hz, 0.25kW
