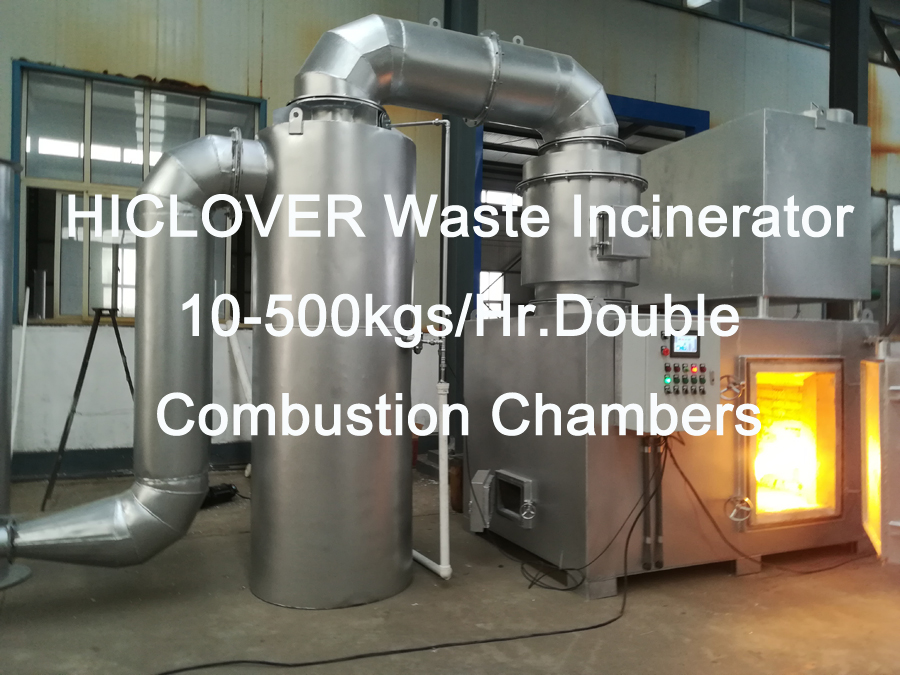

HICLOVER Waste Incinerator 10-500kgs/Hr.Double Combustion Chambers

HICLOVER Incinerator/Parts Range

Main Feature

Medical Waste Incinerators

HICLOVER 10-500kgs/Hr.Double Combustion Chambers

Single Combustion Chamber

Small, Cheap,10-20kgs/Hr.

Three Combustion Chambers(Optional)

3 Chambers for high risk waste

Pet Cremation Equipment

For Pet(small/big) Cremation Business

Animal Incineration Equipment

For other animal incineration

General Waste Incinerator

For MSW

Mobile Incinerator(Optional)

Small-Middle scale, mobile function by

1. )Wheel

2.)DC-Power Trolley

3.)Trailer

4.)Containerized

Wet Scrubber for Smoke Filter(Optional)

1. ) 1 Section Wet Scrubber

2.)3 Sections Wet Scrubber

1 Section Wet Scrubber

S.S304 Cooling Spray tower

3 Sections Wet Scrubber

1.)S.S304 Cooling Spray tower

2.)S.S304 Dust Scrubber

3.) S.S304 Fog and Water Separator

Feeding Door

1.) Front/Side Manual Loading

2.) Top Feeding Door(Optional)

3.) Auto. Feeding Door(Optional)

3rd Combustion Chamber(Optional)



Stainless Steel Main Body(Optional)

S.S201 or S.S304

Control Model

1.) Electric control box(Semi-automatic)

2.) PLC Auto.control box(Automatic)



Light Weight Upgrade(Optional)



W2E(Waste to Energy)(Optional)

Hot Water(Non-drinking water)

Fuel Burner

Italy Baltur Brand

4.) Both D.O and N.G/LPG(not 2in1 burner, exchange burner type)

Temperature Thermocouple

1.) K Type,Stainless Steel 1300(Standard)

2.) K Type,Corundum 1300(Optional)

3.) S Type,Platinum Rhodium 1600(Optional)

Control Case Material

1.) Steel (Standard)

2.) Stailess Steel(Optional)



Chimney/Stack

1.) Stailess Steel (Standard)

2.) Steel(Optional)

3.)Length(Optional)

4.)Thickness(Optional)



Items/Model

TS100(PLC)

TS150(PLC)

TS300(PLC)

TS500(PLC)

Burn Rate (Average)

100 kg/hour

150 kg/hour

300 kg/hour

500 kg/hour

Control Mode

PLC Auto.

PLC Auto.

PLC Auto.

PLC Auto.

Combustion Chamber

1200L

1500L

2000L

3000L

Internal Dimensions

120x100x100cm

150x100x100cm

170x120x100cm

210x120x120cm

Secondary Chamber

600L

750L

1000L

1500L

Smoke Filter Chamber

Dry Scrubber

Dry Scrubber

Dry Scrubber

Dry Scrubber

Feed Mode

Manual

Manual

Manual

Manual

Voltage

220V

220V

220V

220V

Power

1.38Kw

1.69Kw

2.57Kw

4.88Kw

Diesel Oil Consumption (kg/hour)

Ave.20.4

Ave.24.2

Ave.33

Ave.44

Natural Gas Consumption (m3n/hour)

Ave.24.5

Ave.29

Ave.39.6

Ave.52.8

Temperature Monitor

Yes

Yes

Yes

Yes

Temperature Protection

Yes

Yes

Yes

Yes

Oil Tank

200L

300L

500L

500L

Feed Door

80x60cm

80x60cm





Chimney

10Meter

10Meter

14Meter

14Meter

Chimney Type

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

1st. Chamber Temperature

800–1000

800–1000

800–1000

800–1000

2nd. Chamber Temperature

1000-1200

1000-1200

1000-1200

1000-1200

Residency Time

2.0 Sec.

2.0 Sec.

2.0 Sec.

2.0 Sec.

Gross Weight

6000kg

8500kg

11000kg

16000kg

External Dimensions

260x150x180cm

300x160x190cm

400x210x300cm

450x210x300cm
