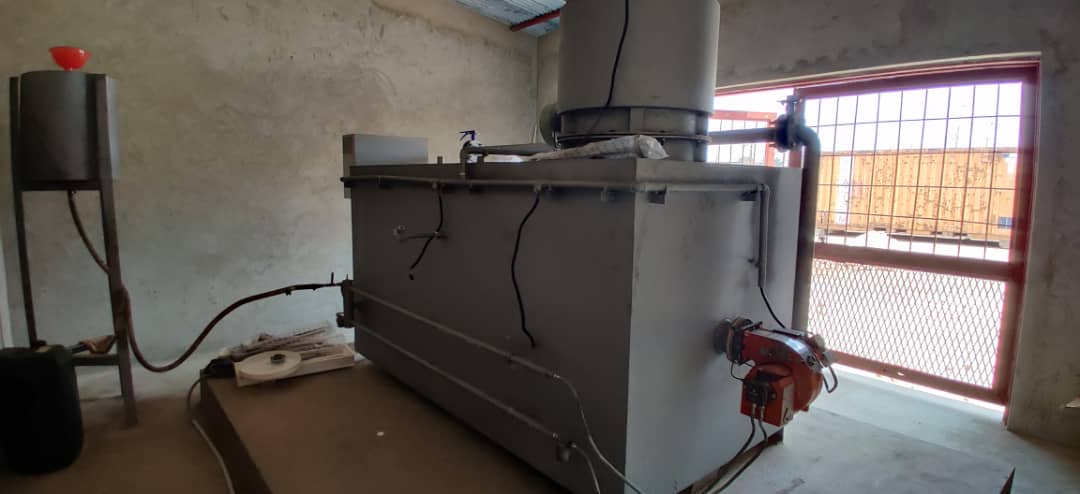

General waste incinerator, dual chamber (primary & secondary)

Phone: +86-13813931455(whatsapp/wechat)
Website: http://www.hiclover.com/

Nanjing Clover Medical Technology Co.,Ltd.


Items/Model

TS30(PLC)




Burn Rate

Average 30-50 kg/hour

Feed Capacity

Average 60kg/feeding

Control Mode

PLC(Programmable Logic Controller Incinerator)

Combustion Chamber

330L

Internal Dimensions

75x75x60cm

Secondary Chamber

180L

Smoke Filter Chamber

Yes

Feed Mode

Manual Feeding

Voltage

220V

Power

1.0 Kw

Oil Consumption (kg/hour)

Average 13.3

Gas Consumption (N.G, m3n/Hour)

***

Gas Consumption (L.P.G, m3n/Hour)

***

Temperature Monitor

Four Digital Display

Temperature Protection

Yes

Oil Tank

600L

Feed Door

55x50cm

Chimney

5Meter

Chimney Type

Stainless Steel

1st. Chamber Temperature

800–1000

2nd. Chamber Temperature

1000-1200

Residency Time

2.0 Sec.

Gross Weight

3000kg

External Dimensions

175x120x140cm




General waste incinerator, dual chamber (primary & secondary), average waste production 200kg/day, nominal burning rate 25 kg/hr (200 kg per 8 hours per day). 380/400 Vac ±10%, 50Hz ±3%, 3Ph or 220/240Vac ±10%, 50Hz ±3%, 1Ph. Diesel fuel storage capacity of the unit for 5 working days in 8 hours each. Minimum life expectancy of 10 years. Meet EU CEC 2000, US AP42, EPA 1995 standards of emissions and operations or equivalent.General waste incinerator, dual chamber (primary & secondary), average waste production 125kg/day, nominal burning rate 15.63 kg/hr (125 kg per 8 hours per day). 380/400 Vac ±10%, 50Hz ±3%, 3Ph or 220/240Vac ±10%, 50Hz ±3%, 1Ph. Diesel fuel storage capacity of the unit for 5 working days in 8 hours each. Minimum life expectancy of 10 years. Meet EU CEC 2000, US AP42, EPA 1995 standards of emissions and operations or equivalent.General waste incinerator, dual chamber (primary & secondary), average waste production 75kg/day, nominal burning rate 9.4 kg/hr (75 kg per 8 hours per day). 380/400 Vac ±10%, 50Hz ±3%, 3Ph or 220/240Vac ±10%, 50Hz ±3%, 1Ph. Diesel fuel storage capacity of the unit for 5 working days in 8 hours each. Minimum life expectancy of 10 years. Meet EU CEC 2000, US AP42, EPA 1995 standards of emissions and operations or equivalent.
